Laser 응용의 선두를 추구하는 기업, 하드램 PRODUCT

제품소개 LCD/OLED 양산설비

LCD/OLED 양산설비

Flexible OLED Cutting 장비

This system is

Cutting complex film with the required panel size of Flexible OLED by
CO2 and Pico UV Laser

Model

G6

특징

1. 초정밀 커팅

2. 높은 생산성

3. 안정성있는 설비 구조

사양
  Shape Cut Cell Cut
Laser Pico UV CO2

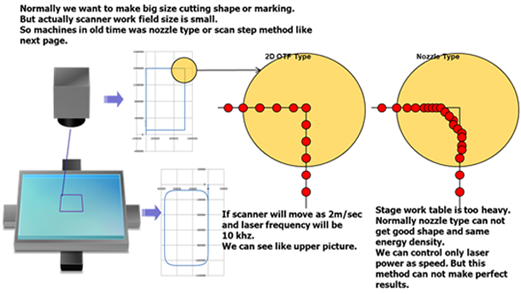

Scanner Process On the Fly 2D On the Fly
Accuracy ±25㎛ ±50㎛
OTF speed Max 700mm/s max 300mm/s

적용분야

Flexible OLED

적합재질

PI

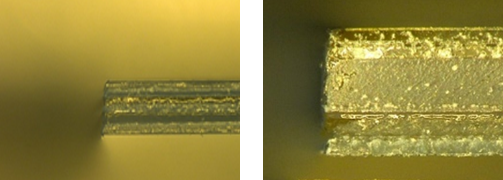

Flexible OLED Cutting 샘플 사진

  • Hardram Quality

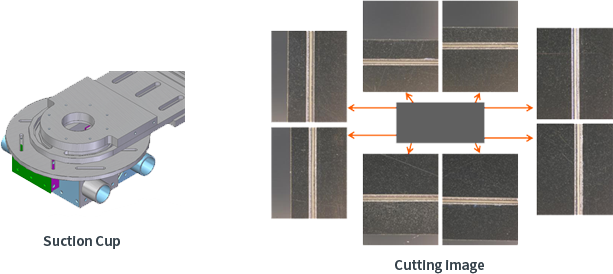

  • Half cut Unit : Suction unit
