Laser 응용의 선두를 추구하는 기업, 하드램 PRODUCT

제품소개 LCD/OLED 양산설비

This system is

Titling for Glass ID of 2D Matrix Code and OCR code by UV Laser

Edge Exposing for required EE pattern with UV LED lamps

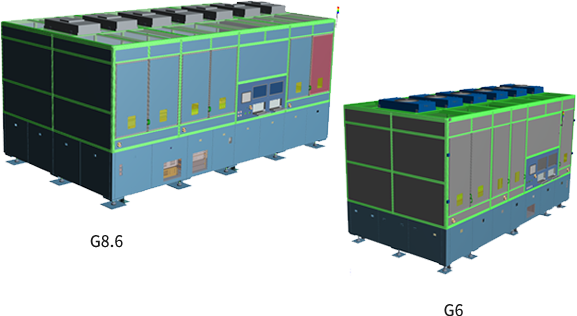

Model	G4.5 / G6 / G8.6 / G10
특징	1. 1LASER / 1HEAD 2. Simple Optical Design 3. Easy Maintenance 4. Good stability of LASER power
사양	Dot Size : 20um ±10% Laser Beam focus point (DOF) : ± 3.0mm Scanning field area : 270mm x 270 mm/Head Possible to adjust Power of each Head Laser power uniformity : ≤±1% Scanning Type : High Speed Optical Scanner Titling Speed : Max 500 Characters/sec Laser Composition : 1 Laser + 1 Scan Head Laser power calibration : Auto type with power meter
적용분야	LCD / OLED	적합재질	PR
