MICRO LED

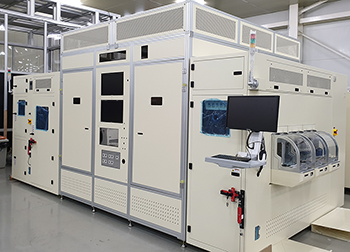

Equipment that transfers (mass) micro LED in air gap condition on the substrate with high transferring accuracy.
Realization laser transferring of micro LED chips for uniformity in emission luminance with Hardram own-developed artificial intelligence software(AI -SW) program.
|
Model |
HR-MICRO-LED-MAIN |
||
|
특징 |
1. HIgh productivity Laser trasferring: Over 200K chips/sec 2. Source Wafer + micro LED(R,G,B) 3. Source Wafer Size : 4”, 6”,8", 12" , Square type 4. micro LED Chip Size : >= X/Y 8um 5. Chip Gap : Min 7um |
||
|
사양 |
Laser Beam steepness≤3um Total tool accuracy ≤1um Laser Transfer Energy density: Max 200 mJ/cm2 High accuracy of laser transferring ±1um |
||
|
적용분야 |
All kinds of monitors including TV/PC |
적합재질 |
Glass/Plastic |
MARKING SAMPLES
