LCD/OLED Production Equipment

Titler & Edge exposure

This system is

Titling for Glass ID of 2D Matrix Code and OCR code by UV Laser

Edge Exposing for required EE pattern with UV LED lamps

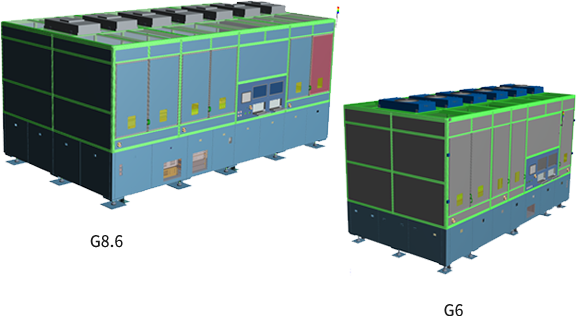

Model

G4.5 / G6 / G8.6 / G10

Characteristics

1. 1LASER / 1HEAD

2. Simple Optical Design

3. Easy Maintenance

4. Good stability of LASER power

Specifications

Dot Size : 20um ±10%

Laser Beam focus point (DOF) : ± 3.0mm

Scanning field area : 270mm x 270 mm/Head

Possible to adjust Power of each Head

Laser power uniformity : ≤±1%

Scanning Type : High Speed Optical Scanner

Titling Speed : Max 500 Characters/sec

Laser Composition : 1 Laser + 1 Scan Head

Laser power calibration : Auto type with power meter

Application
fields

LCD / OLED

Suitable materials

PR

Titler & Edge Exposure Sample photos

  • Mark Type : Square

    2D Code size : 0.72 * 0.72mm

    Matrix：16*16

    Dot Size：45um

    Mark Type : Square

    2D Code size : 1.08 * 1.08mm

    Matrix：20*20

    Dot Size：54um
