Hardram, a company seeking to lead laser applications! PRODUCT

Our Products LCD/OLED Production Equipment

LCD/OLED Production Equipment

Flexible OLED Cutting Equipment

This system is

Cutting complex film with the required panel size of Flexible OLED by
CO2 and Pico UV Laser

Model

G6

Characteristics

1. Ultra-precision cutting

2. High productivity

3. Stable equipment structure

Specifications
  Shape Cut Cell Cut
Laser Pico UV CO2

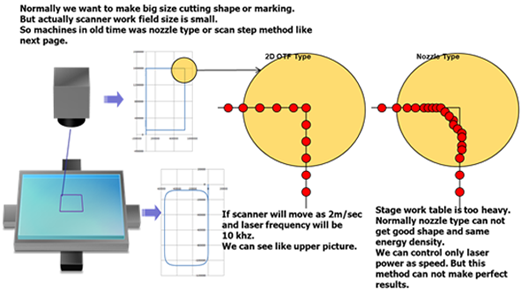

Scanner Process On the Fly 2D On the Fly
Accuracy ±25㎛ ±50㎛
OTF speed Max 700mm/s max 300mm/s

Application
fields

Flexible OLED

Suitable materials

PI

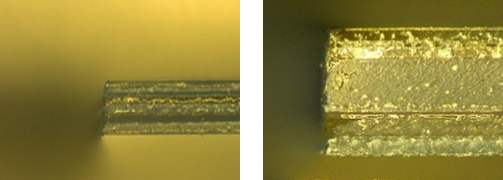

Flexible OLED Cutting Sample photos

  • Hardram Quality

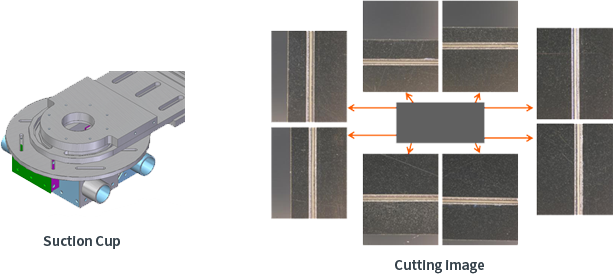

  • Half cut Unit : Suction unit
