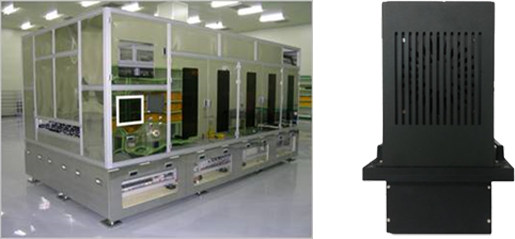

Edge Exposure
This system is

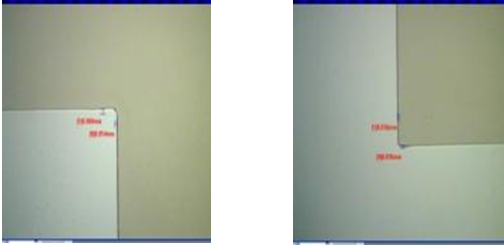

Exposing the Pattern with the Width of spec on Glass Edge which is
coated with PR and./or Metal.
LCD/OLED Production Equipment
|
Model |
G4.5 / G6 / G8.6 / G10 |
||
|
Characteristics |
1. Minimum Gray zone 2. High intensity power 3. LED Type 4. Long life time |
||
|
Specifications |
Cooling Method : By Clean Dry Air Wavelength Validity : UV Exposing Spot size : Max. 75 mm Intensity of Illumination : Higher than 1200mW/cm² UV LED Life Time : over 3 years Lighting Method : Continuity lighting |
||
|
Application |
LCD / OLED |
Suitable materials |
PR |
