Mobile Production Equipment
It performs half or full cutting of various film materials (PET, OCA, PI, POL) by use of laser.
It is mainly used in fields requiring high-speed cutting by use of small spot size.
This equipment uses a new patented laser method called “2D On The Fly”
|

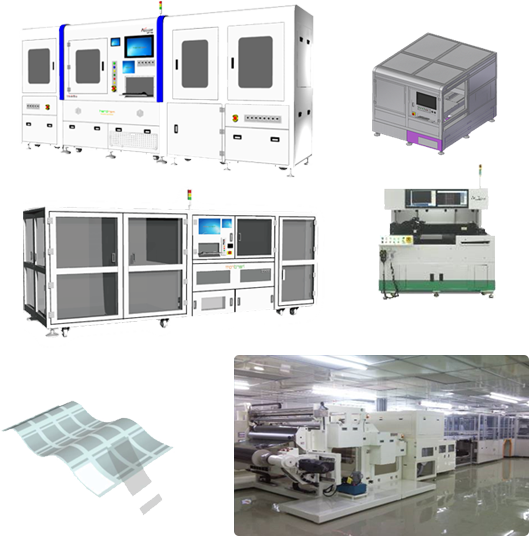

Model |
Sheet Cut Series - HPT500HJ - HPT600 - HPT750 |
Roll to Sheet (RTS) Series - HPT1400R |
|
|
Characteristics |

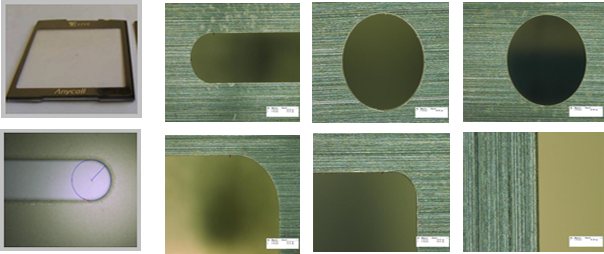

1. World's first 2D OTF Film cutting system 2. More than 500,000 cells (productivity) 3. Ultra-precision cutting (<30um) |
||
|
Specifications |
Laser kind : CO2 Laser Laser Wavelength : 9,4㎛ Laser Power : 180W
Equipment size : 2020(W) X 2000(L) X 1680(H)mm (the main body) Stage(X-Y) : Linear Motor Maximum speed : 500mm/sec (2D On the Fly Speed) Processing Thickness : Less than 1.2mm machining precision : ±50㎛ Lading & Unloading : Option Laser cooling method : forced water cooling dust collector : Smell, for removing organic solvents Power : 50/Hz 220V 3(34kVA) |
||
|
Application |
Film, Mobile |
Suitable materials |
Deco Film, PET Film |
